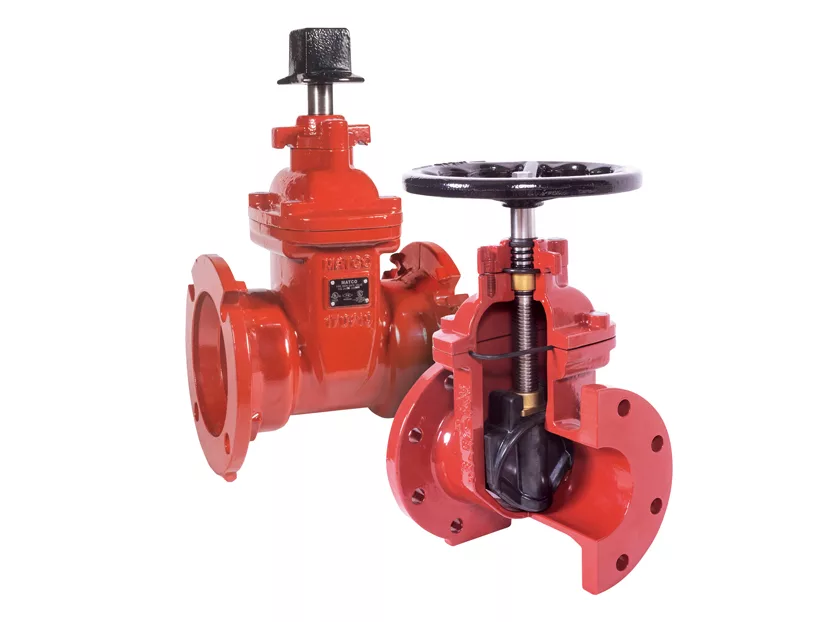

Matco-Norca has introduced its latest AWWA C515-15 valve offering: the 225 Series in 3- to 12-inch and 3- to 24-inch models and sizes. Primary uses include as a fire main gate valve, potable water, sewer force mains and irrigation control applications.
These heavy-duty ductile iron resistant valves are manufactured to the latest AWWA C515-15 standard and are UL listed and FM approved. They have NSF-61/NSF-372 certifications as verified by UL Water Quality. Their flanges and MJ bells are full thickness and exceed all requirements for both C509-15 and C515-15. 225 Series valves have lift lugs, valve box centering guides, full-flow waterway, and a full 304 SS stem, nut and bolt package.
Each 225 Series valve is manufactured using a 300 PSI ductile iron body, 304 SS non-rising stem and resilient EPDM wedge. They can be fitted with a post indicator plate so both vertical and wall mount post indicators can be attached. Each valve has been hydrostatically tested and comes with a “born on date” for traceability. Matco-Norca provides a 10-year warranty.
