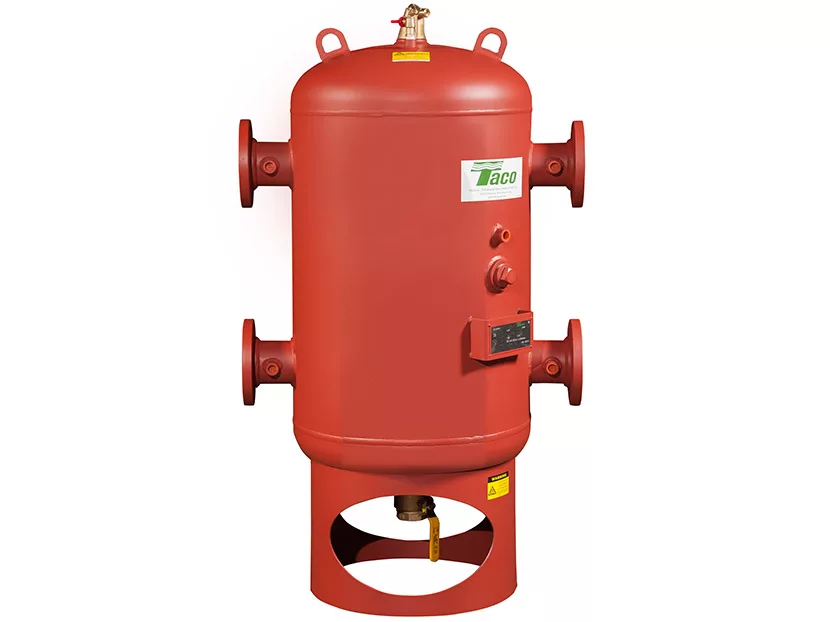

The multi-purpose tanks (MPT), which range from 50 to 1050 gallons, are built with ANSI flanges. ASME rated for 125 and 150 psi working pressures, the products have a maximum operating temperature of 240F. Flanges are available from 2- through 10-inches.
Often used as a buffer tank in boiler or chiller systems, the products serve to eliminate or reduce short cycling. MPTs are available in vertical or horizontal configurations, and with a wide range of lengths and diameters.
The products are available in 16 standard sizes and eight standard configurations. Insulation options include half-inch Armaflex or one-inch silicon blanket.
