Home » Backwater Valves
Plumbing

Backwater Valves

These valves are essential to prevent costly damage from what you want to flow out of your customers’ homes and not back in.

December 5, 2022
No Comments

An unexpected downpour of rain can threaten homes with water problems in general. Fixing clean rainwater backups wherever they may occur is already bad enough — now imagine if it was sewage water, which ruins anything it contacts or touches. Needless to say, necessary repairs could be costly.

On the bright side, there are systems or products to help prevent those types of disasters, and one of them is the installation of a certified listed backwater valve.

A backwater valve, which is sometimes called a backflow or sewer backup valve, is a valve that is installed directly on a sewer line. This device is intended to allow the flow of sewage only in one direction — away from a home.

When a neighborhood experiences a heavy rainfall, there is a greater possibility for the municipal sewer lines to become full or overwhelmed. This leaves the flow of sewage with nowhere to go, but in the path of least resistance, the direction back to the home.

Backwater valves are designed to stop sewage, or any type of water, from flowing back into the home.

The backwater valves are designed in such a way that they have an access box with a clear cover or access opening in order to verify it is functioning properly.

Tested and listed

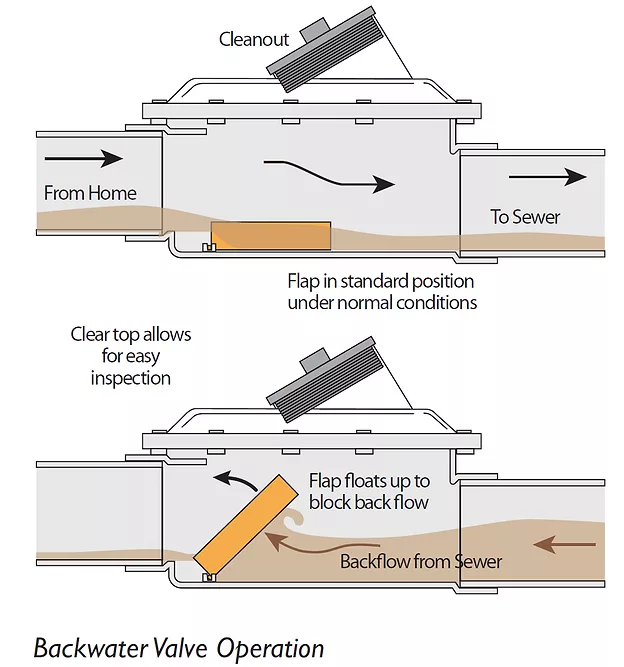

When looking inside the valve you’ll find a flap in a normally open position, which is intended to allow flow in one direction — away from your home. In the event water or sewage is flowing back toward the home, the valve is built with floaters that will lift, causing the flap to close and prevent any backflow.

The beautiful aspect of these valves is that you do not need to reset them when activated, since gravity will allow the flap to fall right back into the normally open position, leading away from your home to the municipal sewer line.

Backwater valves are tested and listed to either standard ASME A112.14.1 & CSA B181 (Backwater Valves) or IAPMO IGC 305 (ABS and PVC Horizontal Backwater Valves with Lifting Devices) in order to verify proper function.

There are many types of backwater valves, depending on your need and application, such as horizontal backwater valves, combination horizontal backwater valves and manual gate valves, terminal backwater valves, combination floor drains with backwater valves, vertical or 90-degree backwater valves and related products.

These valves are essential to prevent costly damage. Are your customers’ homes adequately equipped to prevent a costly disaster by including an appropriately listed and certified backwater valve?

Mark Alvarez is a Product Review Engineer II at IAPMPO.
