New Ulm High School’s Hydronic System Earns an A+

New HVAC system provides comfort for 1,000 students – and even a school of fish in the new greenhouse.

February 5, 2020
John Vastyan
No Comments

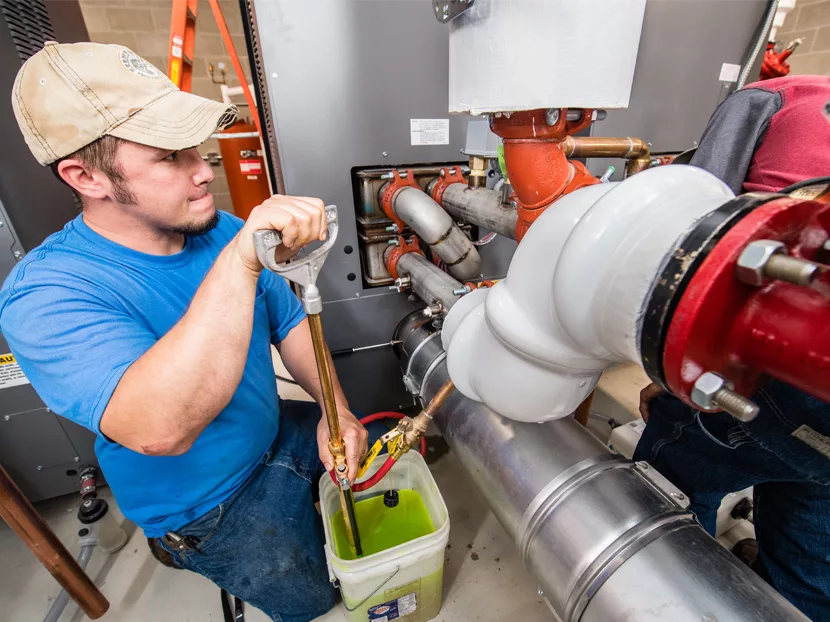

phc02_ulm

The new, New Ulm High School, a modern beauty constructed at a cost of $47 million, won high praise after its completion last year. Today, close to 1,000 students are within the community located about a two-hour drive southwest of Minneapolis. A healthy 17:1 student-teacher ratio and high student test results confirm they’re doing things right in New Ulm.

At full capacity for years, the school district needed the extra room. Portable structures were used as learning space, and more than 950 students were crammed into the old high school – many more than the state’s DOE recommended for a building of its size.

The new, larger high school has state-of-the-art classrooms as well as collaborative learning spaces, a media center, a large commons area, multiple gyms and a performing arts center.

The new facility even includes a different kind of school. A new green house includes hydronic and aquaponic labs that use fish and water to grow crops through sustainable farming practices. The 50 or so full-grown tilapia reside in a large tank and gladly contribute to the natural fertilization of garden plants (not consumed in the student cafeteria).

“I’m aware that the community struggled for a few years to win approval for the new school, but the proof of its value has now been seen in the broad approval the administration has won, and high satisfaction registered by students and parents alike,” says Larry Sundberg, technical training and field support pro with St. Paul, Minnesota-based manufacturers rep firm, Michel Sales.

Sundberg and Dan Dunham at Michel Sales helped to design and specify an innovative hydronic system to keep staff and students comfortable during brutal winter conditions there, and also to meet the plentiful domestic hot water needs throughout the sprawling facility.

Keith Weinzierl at Hallberg Engineering, White Bear Lake, Minnesota, the firm chosen to design the sophisticated mechanical systems there, explains that they chose to build into the building’s mechanical plan a primary-secondary system with variable speed pumping that intelligently connects four high-efficiency, modulating-condensing boilers with variable-speed pumps.

The purpose of the technology is to optimally circulate BTUs, matched precisely to load.

The school has now entered its third winter, and all conditions are good despite record low temperatures.

“There are four, 2.5-million BTU Laars MagnaTherm boilers to provide heat,” Sundberg says. “This was our first experience, and a good one, to work with the boiler manufacturer’s on-board pump/boiler modulation control platform, Vari-Prime. It’s designed specifically to optimize pump and boiler performance, matching pump flow to the modulation of each Laars boiler.”

With Vari-Prime, the boilers work in concert with the VFD-driven pumps so that, as zones call for heat, the variable speed pumps’ flow rates is matched with that of the boilers modulation rate. A boiler deltaT setpoint drives modulation to ensure the current amount of BTUs are being produced to match system load requirements.

“To share run-time among the boilers, their onboard controls allowed us to put them in a lead-lag configuration easily,” Weinzierl says.

Lead-lag sequencing is applied to assure that all of the boilers get equal run time. It also provides seamless operation year-round as each boiler takes its turn operating as the primary heat source, then taking a secondary role as other boilers activate as the load demands.

When boiler(s) modulate up and down, the pumps vary their performance accordingly. Over time, fuel use is reduced.

Installation expertise

Minneapolis-based general contractor, Kraus Anderson, tapped MCAA-member El-Jay Plumbing & Heating, Inc., based in St. Cloud, Minnesota, for the mechanical installation of the heating and cooling systems.

Working closely together on the school’s hydronic system were El-Jay’s jobsite supervisor, Dave Surma and project manager Lon Rust who explained that they typically had eight installers on the project, all from the Minneapolis/St. Cloud Pipefitters Union 539.

“The engineered design that we worked with was excellent,” Rust says. “This was our first experience with Laars’ Vari-Prime, but by the time we completed the installation work and began the task of starting the equipment, we saw how well everything came together.”

Included in the mechanical system work were two chillers and a dozen rooftop air handlers.

Controls compatibility

All facets of the mechanical system were connected by BACNet, which interacts seamlessly with the pump/boiler modulation technology.

Tyson Smith, a seasoned installer with Paape Energy Services, based in Mankato, Minnesota, explains that he and others installed a Schneider EcoStruxure building management system to facilitate networking, graphics and servers – all connected as part of the Schneider “backbone.”

The BACnet MSTP communication allows ongoing, remote monitoring of system function and performance, with alerts if and when they arise.

Smith described the school’s control system as one of “medium complexity” requiring the work of several of Paape’s pros, and an 18-week course of work to complete their part of the project.

“This type of work is right in our sweet spot,” he adds. “On the air-side, it was basic VAV with no auxiliary equipment. And the engineering was excellent – some of the best I’ve had the pleasure to work with. I’ve come to appreciate anything with the ‘Hallberg’ stamp.

“Hallberg’s designs allowed us to work efficiently,” Smith adds. “Another part of the project that we came to appreciate was the ease with which we could connect to and interact with the MagnaTherm boilers via Vari-Prime. Connected to it were the ABB variable frequency drives, which added a level of efficiency to system pumping I’d not previously encountered.”

Too often, Smith says he still sees constant-speed circulation, even for commercial facilities.

“Fortunately, though, that’s gradually becoming a thing of the past,” he adds.

Adds New Ulm School District Facilities Director Pat Lang: “We’ve been very pleased with the steady operation and energy efficiency of the boilers and, for that matter – the entire mechanical system. Because of the realities of winter, spring and fall here in Minnesota, we’re just as concerned about the ability of the system to provide gradual, low heat and comfort in the shoulder seasons as we are in the winter when the systems are working at peak [output]. We’ve now been through all seasons with the equipment and have experienced nothing but full comfort, year-round.”

And so it is that pods of students, and fish – and even thriving gardens nourished by tilapia – can thank new technology for a solution to the many challenges posed by the rigors of Minnesota winter.
