A health-care facility’s fire protection infrastructure is arguably the most critical of its life safety systems. Facility managers rely on it to detect and suppress smoke and fire, evacuate occupants quickly, alert emergency personnel and maintain local code compliance — all at the same time.
Retrofitting or upgrading the fire protection system of an existing facility is not uncommon due to a rise in safety awareness and code regulations governing commercial and industrial fire safety standards, but it can pose several challenges. A temporary fire protection solution that integrates with an existing pumping system helps ensure continuity and compliance.
Hebrew SeniorLife, a senior care organization affiliated with Harvard Medical School, is an integrated, eight-site health-care, housing, research and teaching system that serves thousands of seniors in the Greater Boston area and beyond.
In August 2020, the organization’s Hebrew Rehabilitation Center, an acute, long-term care hospital facility located in Boston’s Roslindale neighborhood, needed to undergo fire system upgrades as part of an overall revitalization project at the long-term care campus.
To update the hospital’s existing fire protection equipment, a temporary fire pump system was needed to maintain safety and meet fire codes during construction. Per building codes, the center could not have occupancy if a temporary fire system was not in place during the mechanical upgrades.
Design specifications dictated that the temporary system handle a flow of 1,250 gallons/minute (gpm) with 70 pounds/square inch (psi) of inlet pressure and 160 psi of outlet pressure. The system also needed to automatically activate upon pressure drop.
The Rental Solution
Local fire protection contractor Superior Fire Protection reached out to Xylem to develop a temporary fire protection solution with a relatively quick turnaround.
“When it comes to mechanical upgrades, the availability of new equipment and long lead times can make it hard for contractors to pin down a construction schedule,” said a pump supplier representative from Xylem.
With more than 3,000 pumps in the Xylem Rental Services fleet in 40 metropolitan locations across the United States, pumps are readily available and often installed the same day as requested.

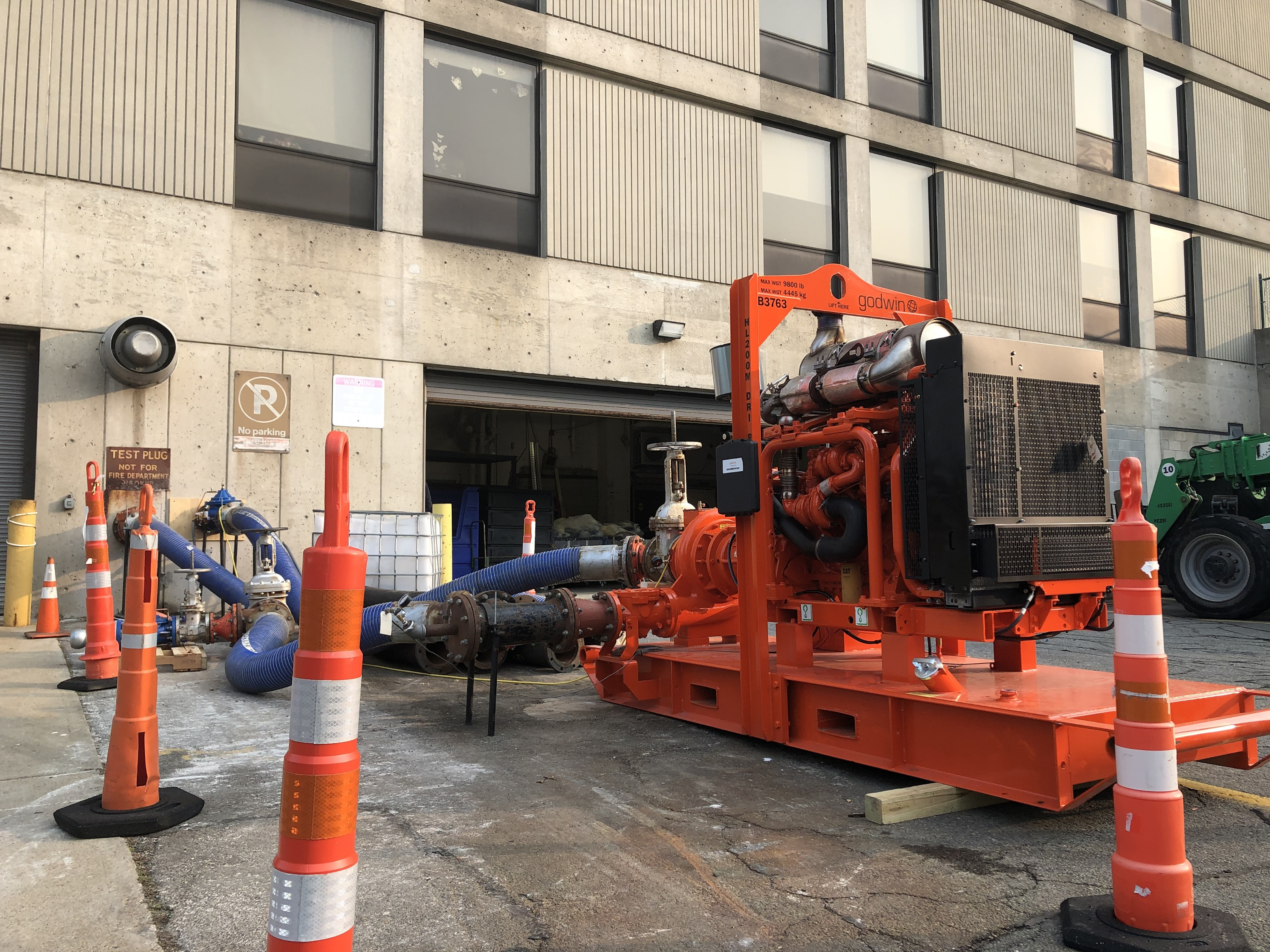

After assessing the situation, Xylem identified the Godwin HL200M pump as the best solution for the Hebrew Rehabilitation Center. Xylem engineers designed the system with a Godwin HL200M 6-inch diesel-driven pump, which offers flow rates up to 2,540 gpm and can handle discharge pressures of 139 psi.
A pressure-reducing valve was installed on the inlet to control street pressure, and a Godwin PrimeGuard 2 automatic pressure controller was added to activate the pump in case of a drop in pressure. The controller programs the pump to run only when needed, eliminating the need for expensive, onsite personnel to monitor pumps manually.
Within two weeks of the initial contact, a temporary fire protection solution was delivered, installed, tested and brought online. The temporary system remained in place for four weeks during permanent system upgrades without incident.
