Water mist systems are fire suppression systems using very small water droplets to extinguish or control fires. The technology started to gain traction approximately 30 years ago as a response to the need for a safer, more effective and environmentally sustainable fire suppression method to replace ozone-depleting halon gas systems.

In fact, the 2023 DiNenno Prize — a distinguished National Fire Protection Association honor recognizing pioneering innovations that significantly impact building, fire and electrical safety — was awarded to the four individuals responsible for the groundbreaking development and deployment of water mist fire suppression technology.

Understanding how water mist systems operate is critical to determining whether they’re the right option for the fire protection needs of a particular occupancy.

To begin, it’s important to understand droplet size, which can vary between 1,000 microns and 10 microns (see Figure 1). Water mist systems can provide fire protection while using less water than a standard sprinkler system due to the increased cooling effects, oxygen displacement and pre-wetting that the droplet size and distribution provide.

Created with GIMP

However, to achieve this small droplet size, high water pressure is often needed. This small droplet size decreases the required application rate, enhances evaporation, and helps reduce oxygen levels to extinguish visible and hidden fires.

As noted previously, water mist systems have been used for specific applications (such as maritime) for quite some time. However, starting in the mid-1990s, advancement in the use of water mist systems was propelled by the phasing out of halon and their use as a fire safety system for spaces where the amount of water that can be stored or discharged is limited.

In addition, there is a long list of applications in which water mist systems have been listed for use, including the following:

Machinery spaces;

Combustion turbines;

Industrial oil cookers;

Computer room raised floors;

Data processing equipment rooms;

Chemical fume hoods;

Continuous wood board presses;

Shipboard passenger cabins and corridors;

Shipboard accommodation and public space areas;

Road tunnels;

Cable conduit tunnels.

Application

There are a few different ways to apply water mist fire protection systems in your building or facility. These types of system configurations will look similar to clean agent system applications because the two systems share several commonalities in how they protect against fires.

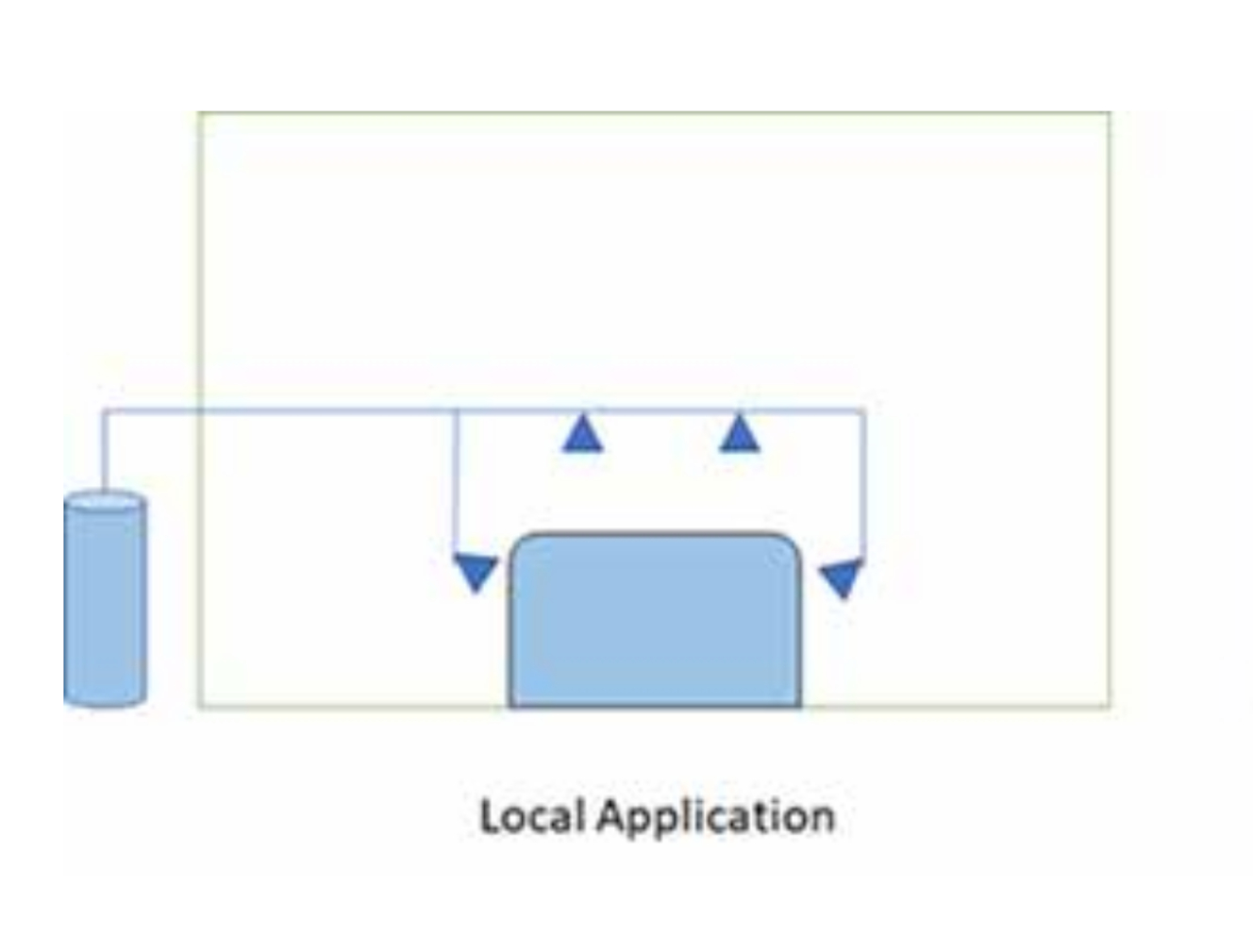

1. Local application. This configuration is used to protect a specific hazard or object (see Figure 2). An example may be the protection of a piece of equipment in a large compartment. The system would be designed to discharge water mist directly onto the object.

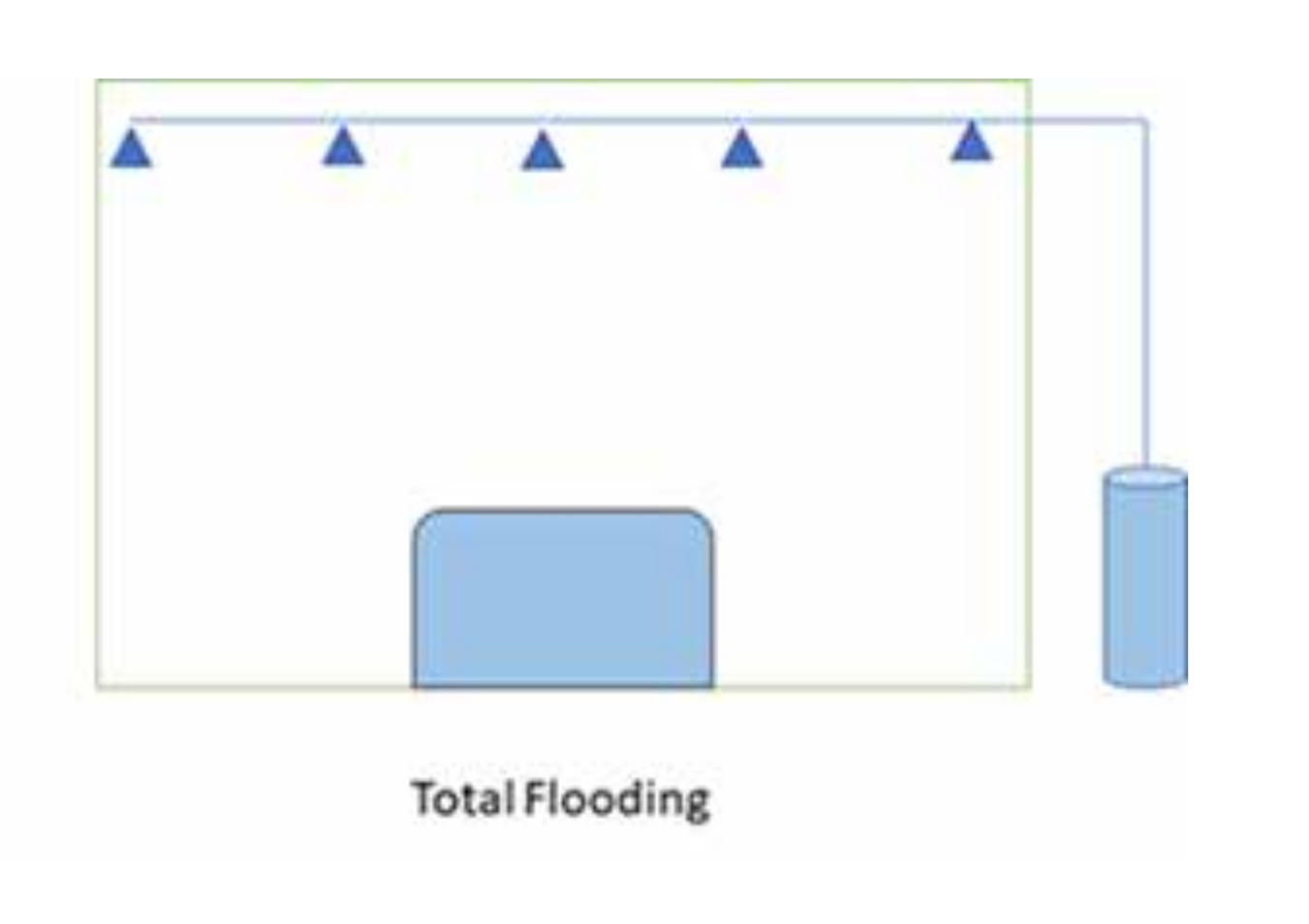

2. Total compartment application. This type of system provides protection to all fire hazards and all areas in a compartment (see Figure 3). The open nozzles are positioned in a grid so that water mist discharges approximately uniformly throughout the entire volume.

3. Zoned application. This type of system is configured to discharge mist from portions of a larger system as required to control fire in a specific part of a compartment. It would be installed in circumstances where the water demand for a total compartment system (i.e., a deluge system), would be beyond the capability of the water supply. Zoning the water mist piping network, however, requires the installation of a detection system that can accurately find the location of a fire.

4. Occupancy protection systems. A water mist system using automatic water mist nozzles installed throughout a building or a portion of a building and intended to control, suppress or extinguish a fire.

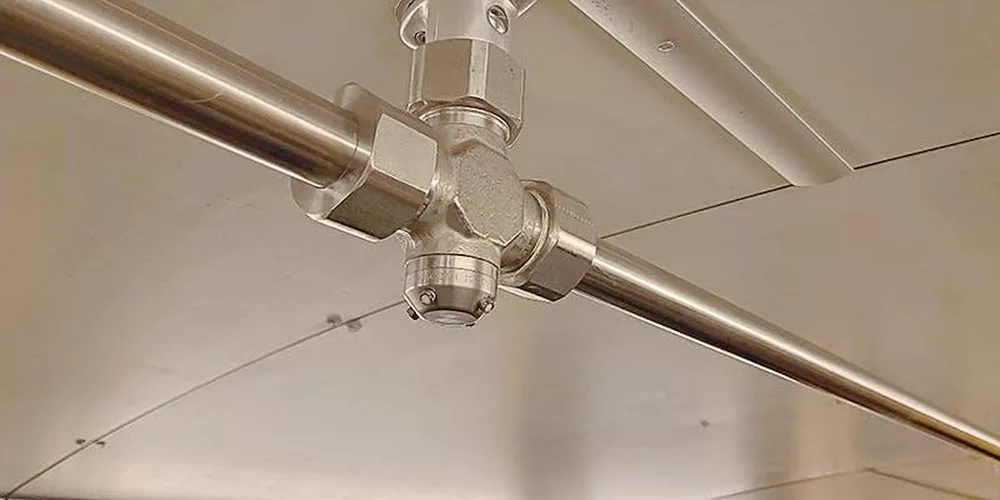

Nozzle Types

Several different types of nozzles can be found in a water mist fire protection system.

1. Automatic. Nozzles that operate independently of other nozzles by means of a detection/activation device built into the nozzle. This activation device is typically a heat responsive element or actuator.

2. Nonautomatic. Nozzles that do not have individual actuators or heat-responsive elements. These types of nozzles are used in deluge systems where the nozzles are always open.

3. Multifunctional. Nozzles capable of operation using both automatic and nonautomatic means. The actuation of a multifunctional water mist nozzle can be by a built-in detection and activation device or by an independent means of activation.

4. Electronically-operated automatic. Nozzles that are normally closed and operated by electrical energy that is initiated and supplied by fire detection and control equipment.

System Types

There are various types of water mist systems that have the same categories as the different types of sprinkler systems. Below is a quick overview (For more information on the types of sprinkler systems visit bit.ly/4bXehFB).

1. Deluge system. A water mist system using nonautomatic mist nozzles (open) attached to a piping network connected to the fluid supply(ies) directly or through a valve controlled by an independent detection system installed in the same area as the mist nozzles.

2. Wet pipe system. A water mist system using automatic nozzles attached to a piping system containing water and connected to a water supply so that water discharges immediately from nozzles operated by the heat from a fire.

3. Pre-action systems. A water mist system using automatic nozzles attached to a piping system containing air that might be under pressure, with a supplemental detection system installed in the same areas as the mist nozzles. The actuation of the detection system opens a valve allowing water to flow into the piping system and discharging through all opened nozzles in the system.

4. Dry pipe systems. A water mist system using automatic nozzles attached to a piping system containing air, nitrogen or inert gas under pressure, the release of which (as from an opening of an automatic nozzle) allows the water pressure to open a dry pipe valve. The water then flows into the piping system and out through any open nozzles.

Droplet Production Methods

Water mist fire protection systems have the option of being either a single fluid (water) or twin fluid (water and atomizing media) system.

1. Single fluid. A single-fluid media system requires one set of distribution piping to transport the fluid to each nozzle. The droplets are then formed in one of the following ways:

• Liquid should be discharged at a high velocity with respect to the surrounding air. The difference in velocities between the liquid and surrounding air should shear the liquid into small droplets.

• A liquid stream is impinged upon a fixed surface. The impact of the liquid on the surface breaks the liquid stream into small droplets.

• Two liquid streams of similar composition collide with one another. The collision of the two streams breaks the individual streams into small droplets.

• Liquid is either vibrated or electrically broken into small droplets (ultrasonic and electrostatic atomizers).

• Liquid is heated above its boiling point in a pressure vessel and released suddenly to atmospheric pressure (flashing liquid sprays).

2. Twin fluid. Twin-fluid media systems produce water mist (droplet production) by impingement of two fluids delivered from separate piping systems. One set of piping provides a liquid (water) to the nozzle, and the second piping network provides an atomizing fluid/media.

Both single-fluid and twin-fluid systems can be operated in the low, intermediate or high pressure range, which is based on the greatest pressure that the distribution piping is exposed to, as shown in Table 1.

Ultimately, while water mist fire protection systems have not yet outpaced the prevalence of traditional sprinkler systems, they have numerous benefits to justify their use in many applications.

For information on the requirements associated with water mist systems, please see NFPA 750, Standard on Water Mist Fire Protection Systems (https://bit.ly/4fsB13s); for more information on the systems themselves, check out the “NFPA Fire Protection Handbook,” Chapter 16-8 (https://bit.ly/3YfvneI).

Brian O’Connor is a senior technical services engineer at the National Fire Protection Association.
